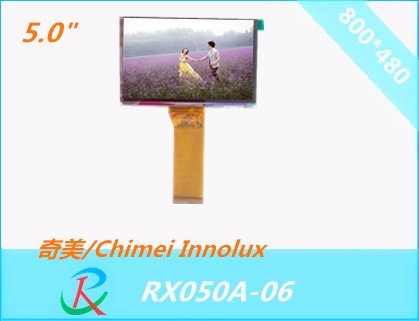

RX050A-06為投影儀專用顯示產品，主要由群創玻璃+ILI6122+ILI5960驅動IC組成，高清分辨,800*480，無背光源，50pin接腳數，6點鐘可視角度，工作溫度:-20℃ - +70℃，儲藏溫度: -30℃ - +80℃。

RX050A-06工程圖 屏幕尺寸：5.0英寸

活動區域：108*64.8 (mm)

外觀尺寸：120.7*75.8*3.1 (mm)

          顯示比列：16:9

拼腳：40PIN

應用領域：投影儀

1 RX050A-06 projector Longxiang excellence special display products,mainly by the Innolux glass +ILI6122+ILI5960 drive IC component, HDresolution, 800*480, no backlight, 50pin pin count, six o'clock viewing angles, the working temperature of -20 DEG C - C: +70, storage temperature: -30 degrees +80 degrees.

RX050A-06 engineering drawing screen size: 5 inches

The activities of the region: 108*64.8 (mm)

Size: 120.7*75.8*3.1 (mm)

Interface definition: RGB 24bits

The panel brightness:

The RX050A-06 specification display ratio: 16:9

Display color: 16.7M

PIN NO: 40PIN

Application: projector
